Home networking

Who doesn’t know the problem? You want to use the internet connection at full power throughout the house or float, have interference-free WLAN reception, enjoy streaming services in high resolution and network your devices via LAN, but you don’t have the necessary cabling.

With our G.hn modems for home networking (InHome Firmware), we offer an inexpensive and quickly implementable alternative to laying new network cables: they are connected to each other existing telephone or coaxial cables – this creates a fast wired network. Up to 16 modems are possible in the network – sufficient for houses of any size. Installation is plug-n-play – connect the cable and get started.

To ensure the best possible performance, all modems communicate peer-to-peer, with each modem capable of sending and receiving data at speeds of up to 1.5 Gbps. This means that even a gigabit-speed fibre-optic connection can be distributed throughout the house without any loss of quality..

Advantage for Wi-Fi repeaters: they are connected to our modems – and thus to the network – via an Ethernet cable, allowing them to provide full coverage throughout the house whilst maintaining mesh functionality. Power over Ethernet (PoE+) is also an option.

For networking via telephone cable, we have several compatible modems with different numbers of LAN ports and additional functions, all devices can be combined in the network as desired:

G5201T: 1x 2,5 Gigabit Ethernet
G5204T: 1x 2,5 Gigabit + 3x Gigabit Ethernet and analogue phone
G4201TM: 1x Gigabit Ethernet
G4202T: 2x Gigabit Ethernet and analogue phone
G4202TCP: 2x Gigabit Ethernet with PoE+



All types of telephone cabling are supported: Point-to-point, “star”, “in series” and also combinations of these.



To create a common network, the telephone cables must be connected to each other. Cable clamps are sufficient for this.

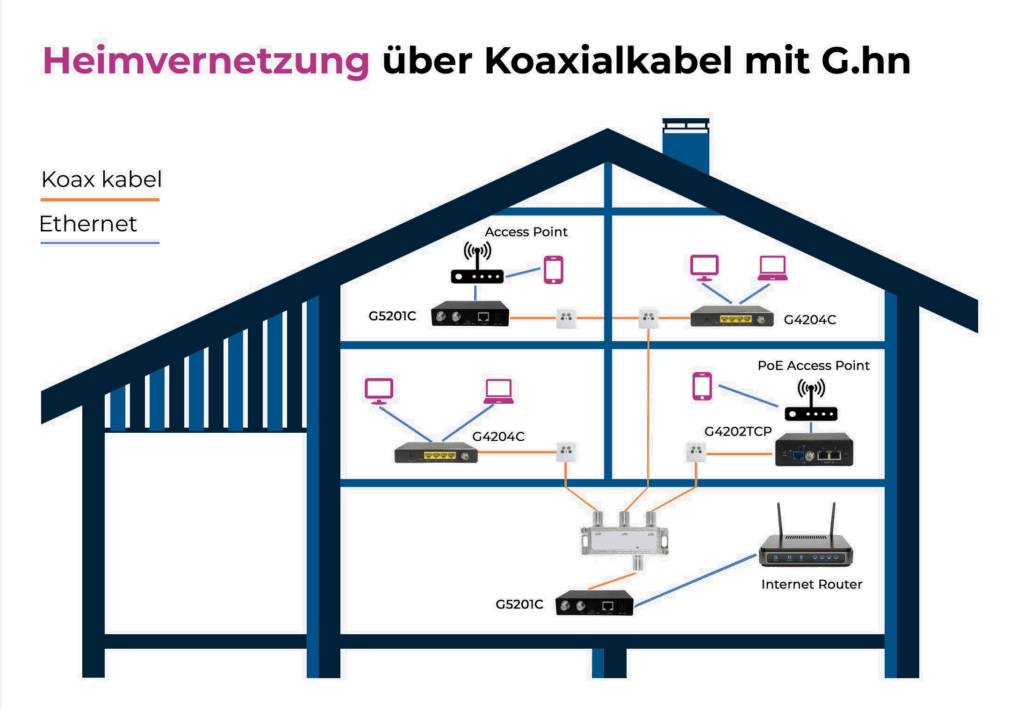

We also offer a range of compatible devices for connecting via coaxial cable, which differ in terms of the number of LAN ports and additional features. All modems can be freely combined within the network:

G5201C: 1x 2,5 Gigabit Ethernet and CATV plug
G5204C: 1x 2,5 Gigabit + 3x Gigabit Ethernet and CATV plug
G4201C: 1x Gigabit Ethernet
G4204C: 4x Gigabit Ethernet
G4202TCP: 2x Gigabit Ethernet with PoE+



The connection between the cables can be made via splitters, taps, SAT multi-switches, combiners, and of course, via loop-through wall outlets.



TV broadcast via SAT and DVB-T2 is supported. Parallel use of cable TV (CATV) is also possible in the frequency range from 258MHz.



Modems for home network via telephone cable (InHome firmware)

G5201T

Price for 1 device:

133.95 € (incl. VAT) Add to basket

User guide

• 1 * G.hn Wave2 SISO/MIMO port
• 1 * Gigabit Ethernet port

Available also on eBay oder Amazon

G4202T

Price for 1 device:

133.95 € (incl. VAT) Add to basket

User guide

• 1 * G.hn Wave2 SISO port
• 2 * Gigabit Ethernet port
• 1 * analogue phone port

Available also on eBay or Amazon

G4202TCP with 2x 30W PoE+

Price for 1 device:

239.00 € (incl. VAT) Add to basket

User guide

• 1 * G.hn Wave2 SISO port
• 2 * Gigabit Ethernet port with 30W PoE+
• Power supply over USB-C PD adapter
• IP30 Housing, Temperature range -10 – 45°C

Incl. 65W USB-C PD power adapter

Modems for home network via coaxial cable (InHome firmware)

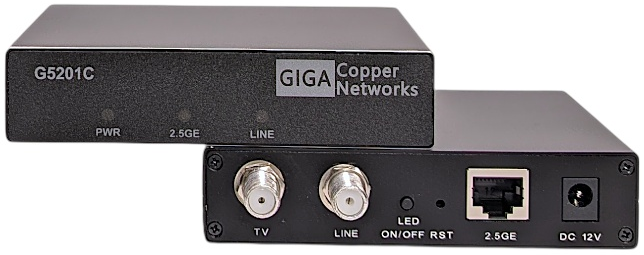

G5201C

Price for 1 device:

133.95 € (incl. VAT) Add to basket

User guide

• 1 * G.hn Wave2 port incl. CATV
• 1 * 2,5 Gigabit Ethernet port
• CATV port, frequency range 258-862MHz

Available also on eBay or Amazon

G4204C

Price for 1 device:

145.00 € (incl. VAT) Add to basket

User guide

• 1 * G.hn Wave2 port
• 4 * Gigabit Ethernet port

Available also on eBay or Amazon

G4202TCP with 2x 30W PoE+

Price for 1 device:

239.00 € (incl. VAT) Add to basket

User guide

• 1 * G.hn Wave2 port
• 2 * Gigabit Ethernet port with 30W PoE+ (RJ45)
• Power supply over USB-C PD adapter
• IP30 housing, Temperature range -10 – 45°C

Incl. 65W USB-C PD power adapter
