Gigabit Ethernet over Coax (EoC)

G42xx-C series is based on the most advanced technology for in-house networking - G.hn Wave2.

It can use any type of coax cable. The data transmission always takes place in the frequency range 2-200 MHz. Therefore it is possible to transmit data as well as receive SAT-TV (950-2250 MHz), DVB-T2 (470-690 MHz) and cable-TV (DVB-C) in the frequency range above 258 MHz on the same coaxial cable.

Thanks to flexible bandwidth sharing (1 Gbit/s in each direction) and very short latencies on par with Ethernet cable (<1ms), the G4201C and G4204C InHome modems are ideal for forwarding the fiber connection or home networking in private homes over existing coax cables.

The installation is plug-n-play - i.e. without any configuration effort.


Netzwerk über Koax Kabel - Punkt zu Punkt

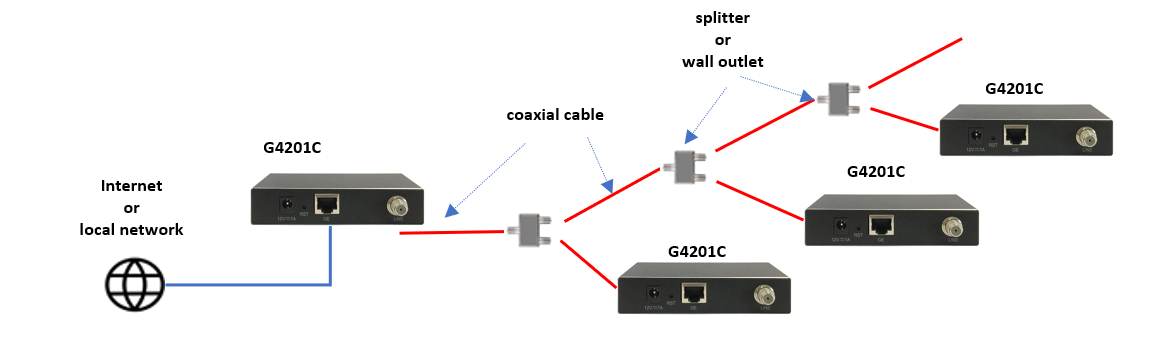

  • To set up a local area network throughout the home, up to 16 G4201C and G4204C InHome modems can be connected together via the coaxial cables.

    All types of cabling are possible - both "star" or "in series" from one antenna socket to the other, and of course the combinations of these.
    The connection of individual coaxial cables can be done via SAT multiswitches, SAT feeders or coaxial splitters.

    The G4201C and G4204C InHome modems are compatible with each other and can be combined in the network as required.


Netzwerk über Koax - Punkt zu Multipunkt

In the master/client configuration networks of any size are possible. If desired, the clients can be isolated from each other (endpoints).

  • For a network with up to 16 clients, G4201C or G4204C modems can be used as masters.

  • With the help of G.hn switches networks in buildings of any size can also be set up in a short time via several cable harnesses (4/6/8, depending on the switch) or fibre optic connections forwarding in multi-dwelling units can be implemented.

    The switches are VLAN capable. One switch port can be connected to up to 16 clients on each cable strand. Several switches can be connected together.
Netzwerk über Telefonkabel - Switch für mehrere Anschlüsse


G.hn Modems for Coax

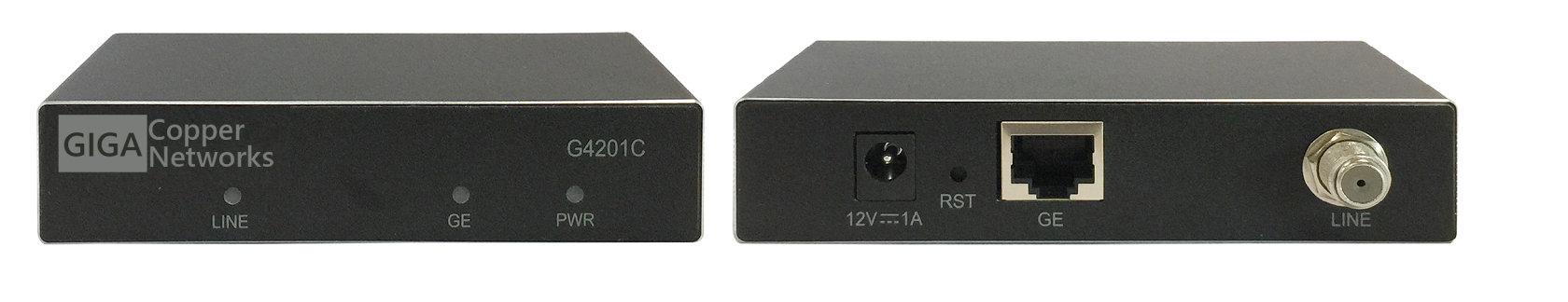

G4201C (InHome or master/client)

  • 1 * G.hn port (F-Connector) SISO
  • 1 * 10/100/1000BaseT RJ45 Port
Spec data sheet Specquick guide InHome Specquick guide master/client

Direct ordering price: 119€ incl. taxes excl. shipping outside Germany (InHome)

Also available on ebay or Amazon






G4204C (InHome or master/client)

  • 1 * G.hn port (F-Connector)
  • 4 * 10/100/1000BaseT RJ45 Port
Specdata sheet Specquick guide InHomeSpecquick guide master/client

Direct ordering price: 139€ incl. taxes excl. shipping outside Germany (InHome)

Also available on ebay or Amazon




G4204C-W - G.hn modem with 4x1Gbit switch and Wi-Fi

  • 1 * G.hn Wave2 Port (F-Connector)
  • 4 * 10/100/1000BaseT Ethernet Ports (RJ45)
  • 1 * Power on/off switch
  • 1 * USB2.0/3.0 port
  • 2.4 GHz und 5 GHz 802.11 b/g/n/ac Wi-Fi

Direct ordering price: 220€ incl. taxes excl. shipping outside Germany

Specdata sheet



G.hn Headends for Coax



G4200C - for 6 coax lines (up to 96 clients)

  • 6 * G.hn EoC ports, each port supports up to 16 clients
  • 1 * 1000-X /10000-X SFP/SFP+ ports
  • 2 * 10/100/1000BT RJ45 port
  • 1 * RS232 console port (RJ45)
Specdata sheet Specquick start guide Specmanual
Available on request

G4200-4/8C – for 4/8 coax lines (up to 64/128 clients)

  • 4/8 * G.hn EoC Ports, each port supports up to 16 clients
  • 2 * 1000-X/2500-X/10000-X SFP/SFP+ ports
  • 3 * 10/100/1000BT RJ45 ports
  • 1 * RS232 console-port (RJ45)
Specdata sheet Specquick start guide Specmanual

Available on request or direct by Amazon



schnelles Netzwer über Telefonkabel - mehrere Telefonader
