OnAccess G42xx-T – Network over Phone cable

OnAccess G42xx-T is based on the latest technology for in-house networking - G.hn Wave 2, which can use any type of twisted-pair cable (CAT 1-7) - including, of course, the telephone cables found in almost every household.

Depending on the device, data transmission can be carried out both in SISO (1 wire pair, 2-200 MHz) and MIMO (2 wire pairs, 2-100 MHz) mode.

For a connection you always need 2 G.hn end devices - a master (headend or modem as master) and a client (modem) - which are connected to the respective end of the telephone cable ("point-to-point" connection). The master specifies the transfer rates for download and upload.

Practical application

The OnAccess G42xx-T series includes several G.hn headends and G.hn modems:

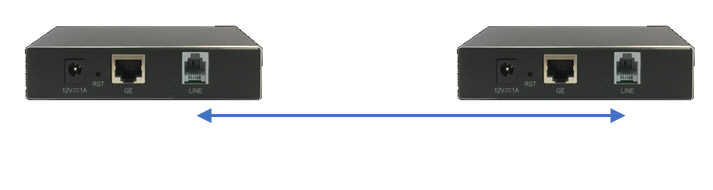

  • In the simplest case - if you want to establish a network connection using only a telephone cable - two identical G.hn modems are sufficient. One of them takes over the role of the master, the other one - the role of the client.

    Available at EBAY

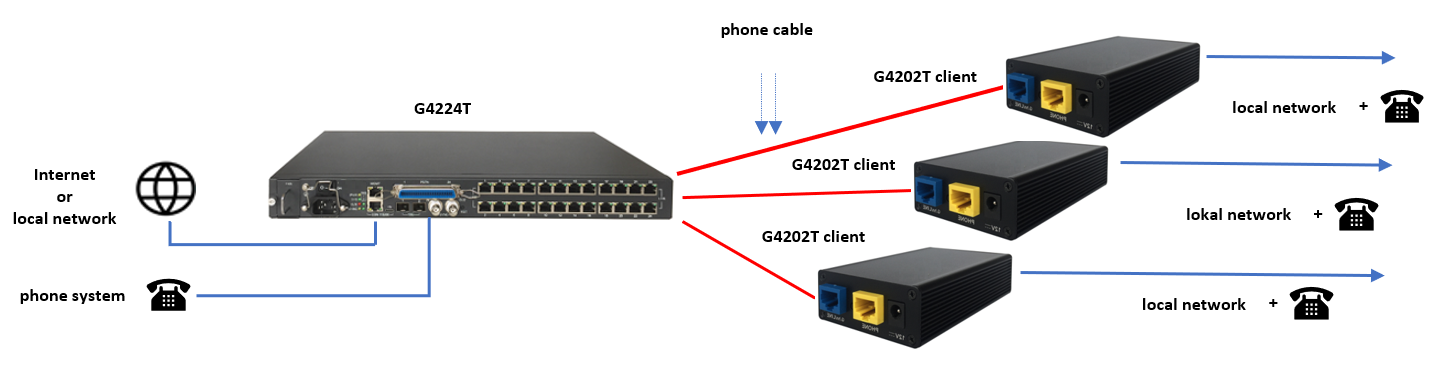

  • If you want to build a network over several telephone cables, it is recommended to use a G.hn Headends (alternative name GAM = G.hn Access Multiplexer).

    It always acts as a master and allows the connection of several G.hn modems (4 to 24 depending on the headend) and the central management of the network.

    For even larger networks, several headends can be interconnected.

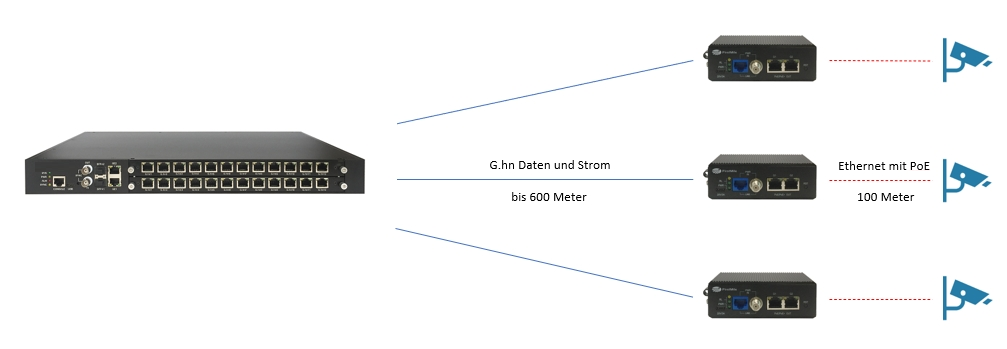

  • The G4224 headend has a special feature - it can power its clients (G4202TCP) simultaneously via the G.hn line - up to 600 meters away!

    The G4202TCP, for its part, can supply power to other devices (e.g. IP cameras) via its two Ethernet ports (PoE+ with 15W/30W up to 100 meters).




G.hn Headends for Twisted-Pair

*All headends can be combined with all modems.

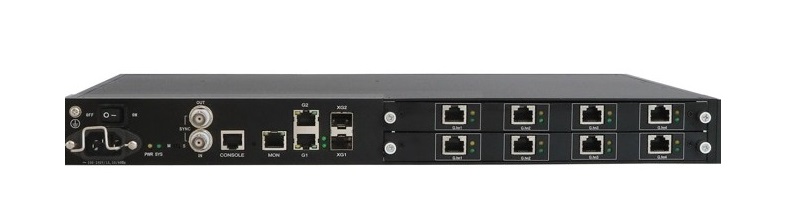

DatenblattG4200-4T and G4200-8T – for 4 / 8 Clients

  • 4/8 * G.hn Wave2 Ports (RJ45) MIMO or SISO
  • 2 * 1000-X/2500-X/10000-X SFP/SFP+ Ports (i.e. for Internet uplink)
  • 3 * 10/100/1000BT RJ45 Ports (i.e. for Internet uplink)
  • 1 * RS232 Port (RJ45)
  • 2 * SYNC BNC Ports for time synchronization with other headends

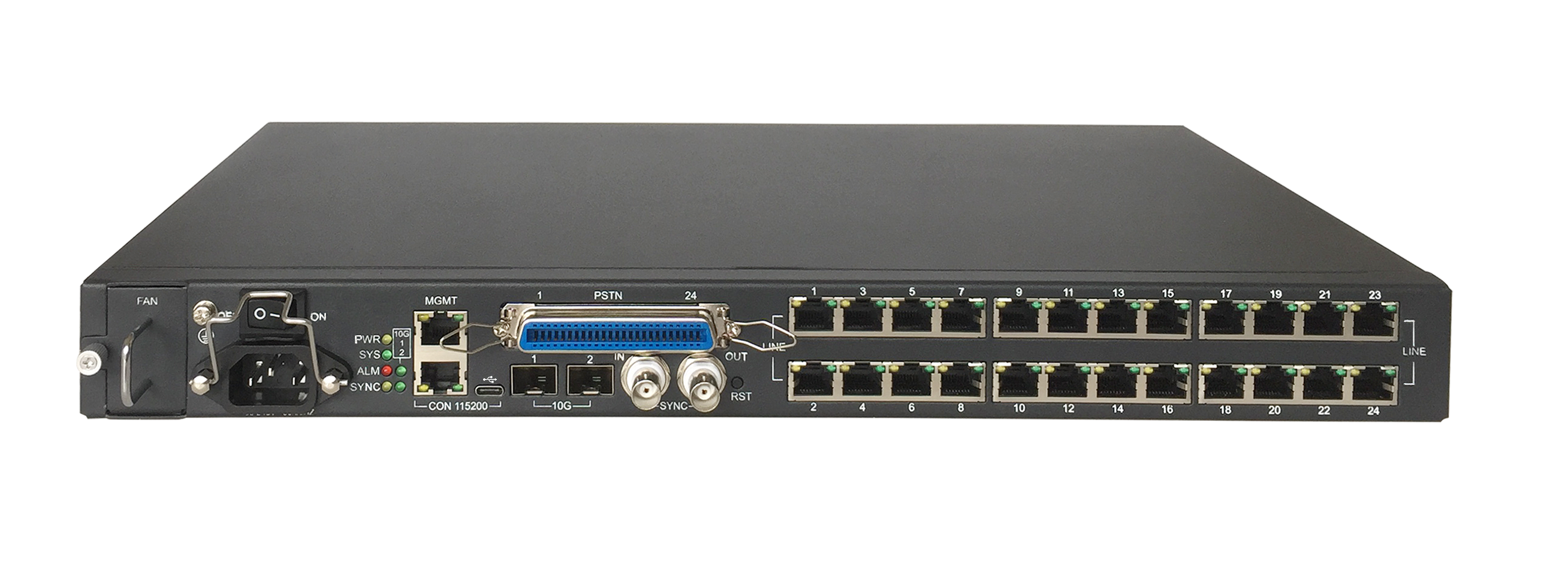

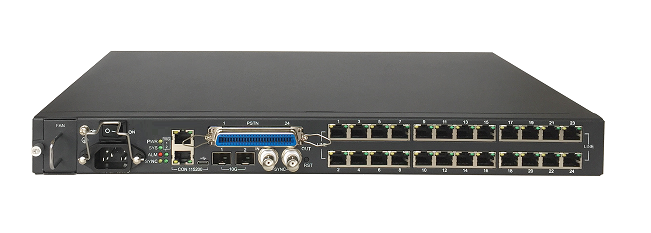

DatenblattG4224T – for 24 Clients

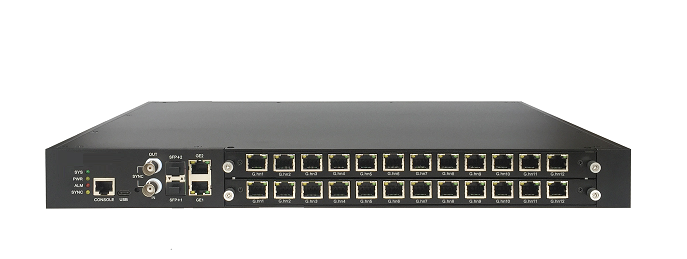

  • 24 G.hn Wave 2 Ports (RJ45) MIMO or SISO
  • 1 * RJ21 Connection (looping through 24 analog telephone lines)
  • 2 * 1000-X/2500-X/10000-X SFP/SFP+ Ports (i.e. for Internet uplink)
  • 1 * 10/100/1000BT RJ45 Port (i.e. for Internet uplink)
  • 1 * RS232 Konsole-Port (RJ45)
  • 2 * SYNC BNC Ports for time synchronization with other headends

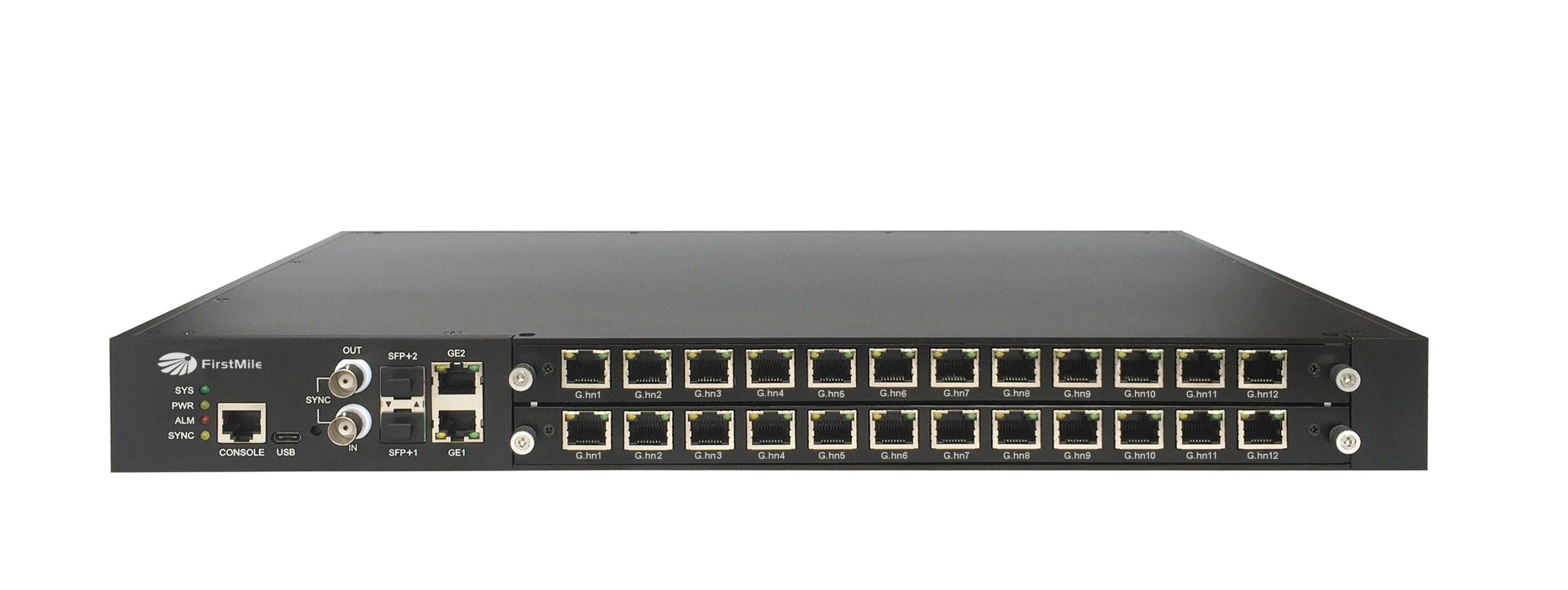

G4224 – for 24 Clients with power supply (PoE)

  • 2 Slots for 2 cards with 12 * G.hn Twisted-Pair or 12 * G.hn Coax (BNC or F- Connector) or 12 * Ethernet Ports
  • each card offers 10 * 802.3at (30W) and 2 * 802.3bt (90W) over twisted pair/coax up to 600 meters
  • 2 * power supplies with 300 Watt each
  • 2 * 1000-X/2500-X/10000-X SFP/SFP+ Ports (z.B. Uplink zum Internet)
  • 2 * 10/100/1000BT RJ45 Ports (z.B. Uplink zum Internet)
  • 1 * RS232 Konsole-Port (RJ45)
  • 2 * SYNC BNC Ports for time synchronization with other headends



G.hn Modems für Twisted-Pair

*Alle Modems lassen sich an alle Headends anschliessen. Eine direkte Verbindung zwischen 2 Modems (ohne Headend) ist möglich.

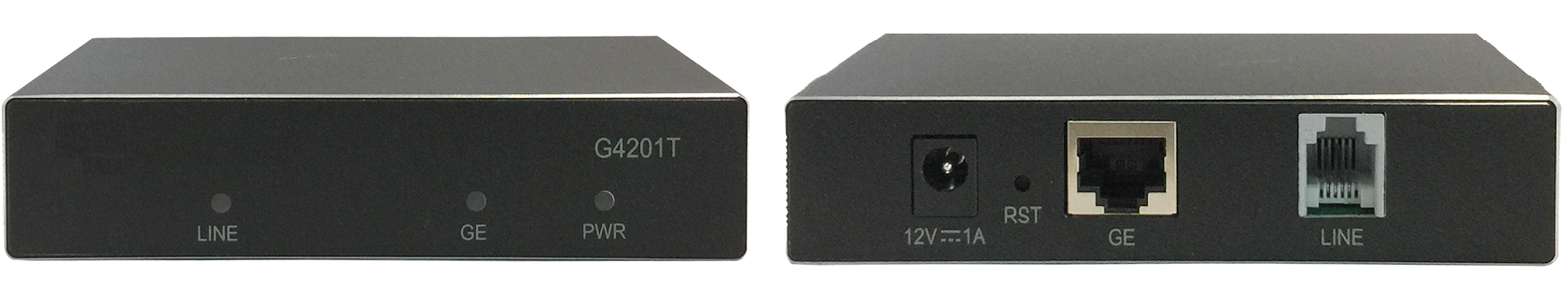

Spec G4201T

  • 1 * G.hn port (RJ11) SISO
  • 1 * 10/100/1000BaseT RJ45 Port

    Get it on EBAY

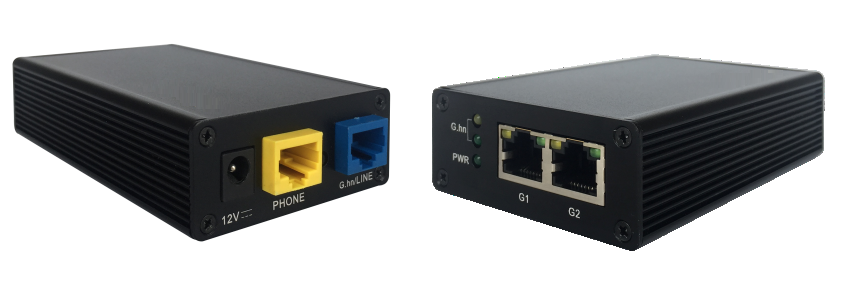

 G4202T

  • 1 * G.hn port (RJ45) MIMO or SISO
  • 1 * Analog phone loop through port(RJ45)
  • 2 * 10/100/1000BaseT RJ45 Ports

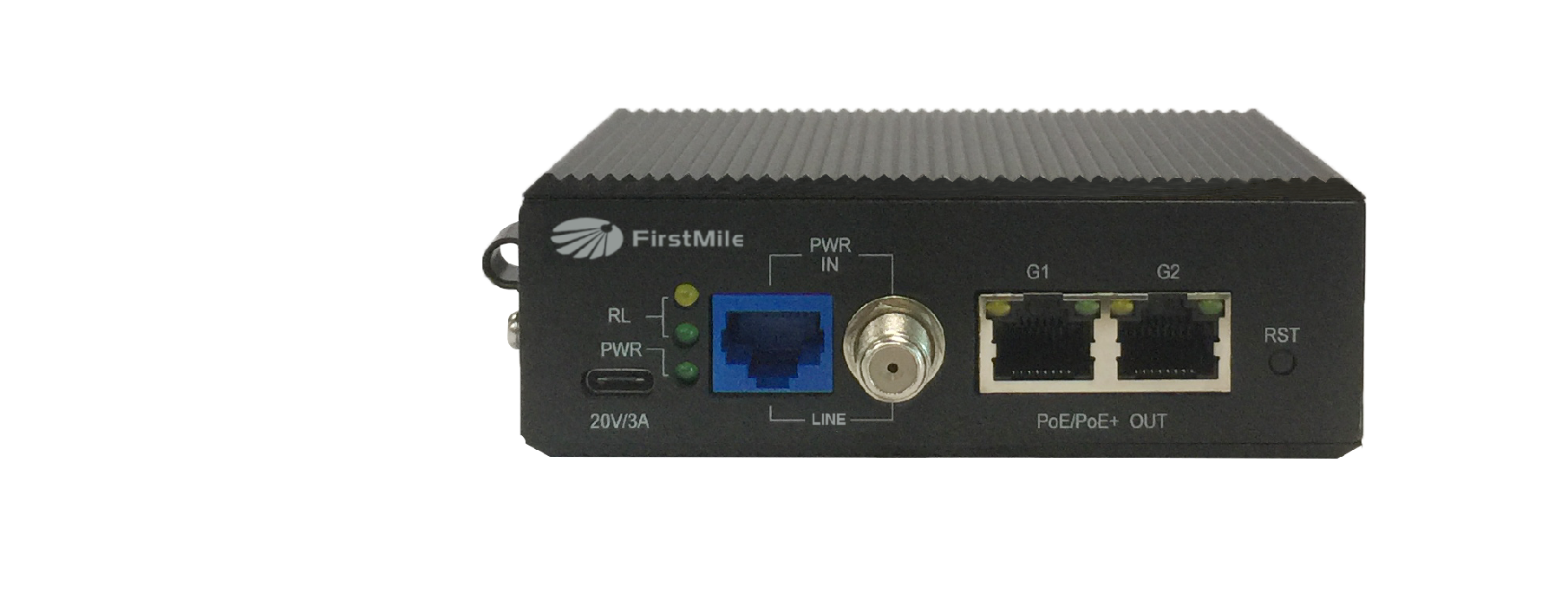

G4202TCP - combined modem with power supply

  • 1 * Combined G.hn Port (RJ45 Twisted-Pair und F-Connector Coax)
  • 1 * Power supply over G.hn or local USB-C Port (20V/3A)
  • 2 * 10/100/1000BaseT Ethernet Ports (RJ45) with PoE+ (802.3af/at – 15W/30W)

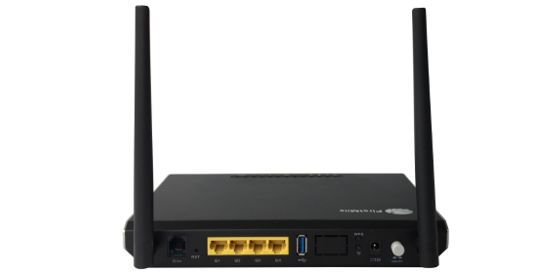

G4204T-W - G.hn modem with 4x1Gbit switch and Wi-Fi 5

  • 1 * G.hn port (RJ11) MIMO
  • 4 * 10/100/1000BaseT RJ45 Ports
  • 1 * Power on/off switch
  • 1 * USB2.0/3.0 port
  • 802.11 b/g/n/ac Wi-Fi 5, 1200Mbps
